Now you can own high quality digital copies of some of the documents and drawings I have used in my research. PDF and image files made available on CD-ROM at reasonable prices.Latest addition: F-86 Saber Photos
Payment by PayPal is preferred. Payment by check or money order also accepted (minimum order, $20), sent to:
| ||||||
 Navaho XSM-64 drawing and photo references Large format drawing of the two-stage intercontinental cruise missile. Scanned at 300 dpi grayscale from a 1/72 scale drawing (Rockwell, dated 1974), presents top, side and front views along with cross sections and data. Intended to aid model builders. BONUS: Standard Missile Characteristics, XSM-64A, dated 1 May 57, showing an unbuilt version of the vehicle with landing gear BONUS: Standard Aircraft Characteristics, XB-64A, dated 12 Aug 53, showing an early unbuilt version of the intercontinental cruise missile BONUS: 49 photos (2048 X 1536 px) of the Navaho display near Kennedy Space Center, and the Navaho booster engine on display at the USAF missile museum nearby. Further BONUS: 2 drawings of 1949 early proposal, with top-and-botom ramjets and a V-2-style rocket engine; 3-vieew of G-26 booster; 3-view of G-26 missile; 3-viewe of G-38 booster. Price for CD-ROM, US: $6 Price for CD-ROM, everywhere else on Earth: $8 |

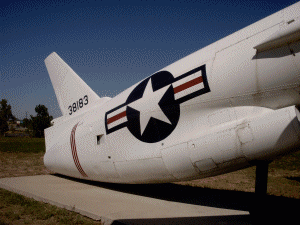

 Snark SM-62 Drawing and Photo References High resolution (300 dpi) scans of 4 drawings of the Snark cruise missile from the Snark SM-62A Technical Manual T.O. 21-SM62-2-1, showing the vehicle in great detail, along with 46 photos (2048X1536 px) of the Snark on display at Hill Air Force Base. Photos taken in 2004 and 2007 under differing weather and lighting conditions. Price for CD-ROM, US: $6 Price for CD-ROM, everywhere else on Earth: $8 |

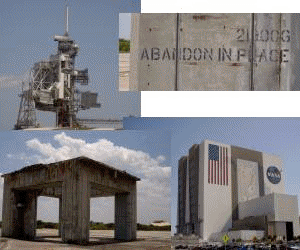

 Kennedy Space Center/USAF Missile Museum A business trip took me to KSC in 2006. While not able to take a camera everywhere I wanted (such as the tour of the VAB I went on), and while I did nopt have time to go everywhere I wanted (such as to visit the Saturn V display), I did nevertheless manage to take many (229) photos. At KSC: The Apollo 1 launch table (with "Abandon in Place" stenciled on); the VAB (exteriors only, drat); Atlas, Titan, Redstone, Saturn Ib on display at the Visitors Center Rocket Park; several display models including a full-scale Soyuz, and more. Also: External displays at the Air Force Space and Missile Museum, such as:
Price for CD-ROM, US: $12.00 Price for CD-ROM, everywhere else on Earth: $14.00 |

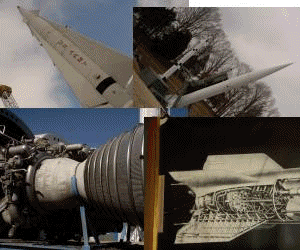

 Marshall Space Flight Center/ US Space and Rocket Center Over several years, a number of business trips have taken me to Huntsville, Alabama. I have always made sure to bring my camera, and now have a collection of over 700 photos showing rockets, missiles, engines, displays and display models. Included in this photo set are: the Lockheed A-12 (SR-71 predecessor) on display at the USSRC; the Saturn V, the Saturn I (within MSFC) and Saturn I Block II, Titan II first stage, the full-scale, vertically-stacked replica Saturn V, the Centaur, the SSME, the 1/10-scale cutaway model of the Saturn V, a display model of the Orion nuclear pulse space vehicle, two large display models of the X-30 National AeroSpace Plane (NASP), rocket park photos, and many more.Most photos are 2048X1536 pixels, but some of the early ones are 1600X1200 pixels (camera upgrade) Price for CD-ROM, US: $30.00 Price for CD-ROM, everywhere else on Earth: $32.00 |

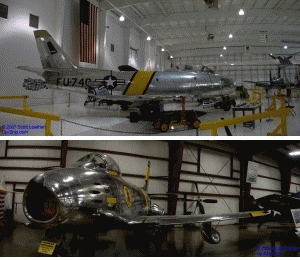

 F-86 Saber Photos Thirteen large, panoramic photos of F-86 Sabers, ranging from 3200 to 11570 pixels wide. Eight are of the "cutaway" Saber on display at the USAF Museum in Dayton, showing all the internal bits and pieces. Two are of the RF-86K also on display at the USAF Museum; two of the F-86 on display at the New England Aerospace Museum; and one of the F-86 on display at the Tennessee Museum of Aviation. Price for CD-ROM, US: $10.00 Price for CD-ROM, everywhere else on Earth: $12.00 Promo images of F-86 photos |
 Description Description Price for CD-ROM, US: Price for CD-ROM, everywhere else on Earth: |
